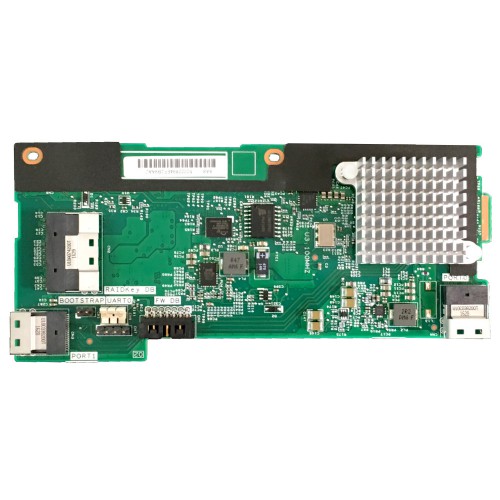

[4Y37A16225] ThinkSystem SR670 RAID 530-8i PCIe Adapter

Specifications

Storage Controller
Interface SATA / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Supported Devices Disk array (RAID)
Channel Qty 8
Max Storage Devices Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, JBOD
Processor LSI LSISAS3408
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 20 - 90% (non-condensing)
General
Device Type Storage controller (RAID) - plug-in card - low profile
Host Bus PCIe 3.0 x8
Expansion / Connectivity
Interfaces 2 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
