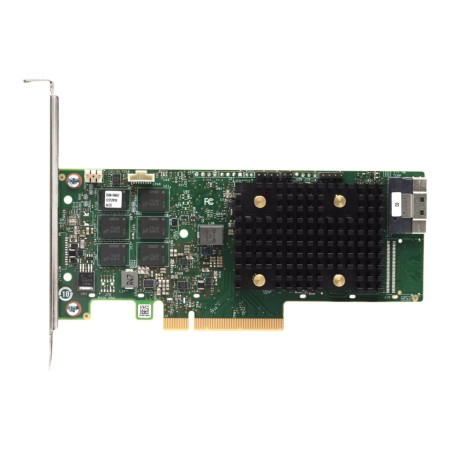

[4Y37A09735] ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Internal Adapter

Specifications

Storage Controller
Interface SATA / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Buffer Size 8 GB
Supported Devices Hard drive, disk array (RAID), solid state drive
Channel Qty 16
Max Storage Devices Qty 16
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor Broadcom SAS3916
Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 131 °F
Humidity Range Operating 20 - 80% (non-condensing)
General
Device Type Storage controller (RAID) - plug-in card
Host Bus PCIe 4.0 x8
Expansion / Connectivity
Interfaces 2 x SAS 12Gb/s - Slim SAS (SFF-8654) (internal)
