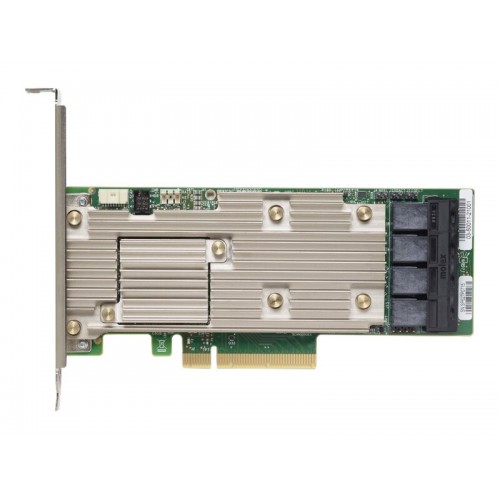

[4Y37A09721] ThinkSystem RAID 930-16i 8GB Flash PCIe 12Gb Adapter

Specifications

Storage Controller
Interface SATA / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Buffer Size 8 GB
Supported Devices Hard drive, disk array (RAID), solid state drive
Channel Qty 16
Max Storage Devices Qty 16
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Processor LSI LSISAS3516
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 20 - 90% (non-condensing)
General
Device Type Storage controller (RAID) - plug-in card - low profile
Host Bus PCIe 3.0 x8
Expansion / Connectivity
Interfaces 4 x SAS 12Gb/s - 4 x Mini SAS HD (SFF-8643) (internal)
