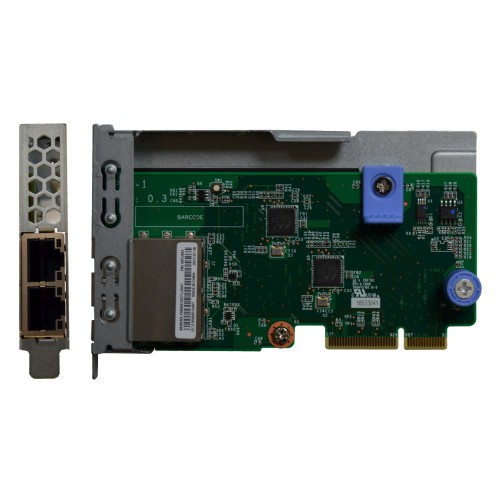

[7ZT7A00544] ThinkSystem 1Gb 2-port RJ45 LOM

Specifications

Processor / Memory
Processor 2 x Marvell 88E1514

Miscellaneous
Compliant Standards ICES-003 Class A, RoHS, UL 60950-1 Second Edition, FCC Part 15 A, KCC Class A, VCCI Class A, RCM, RRA Class A
Networking
Ports Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Data Transfer Rate 1 Gbps
Capacity Virtual functions: 128
Remote Management Protocol RMON
Features Flow control, VLAN support, wake on LAN (WOL), IPv6 support, Quality of Service (QoS), RDMA support, Virtual Machine Device Queues (VMDq), PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, Link Aggregation Control Protocol (LACP), Energy Efficient Ethernet, Class of Service (CoS), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Network Controller Sideband Interface (NC-SI), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Virtual Ethernet Bridge (VEB), TLP Processing Hint (TPH), Advanced Packet Filtering, Intel Virtual Technology (VT), Jumbo Frames support (up to 9728 bytes)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg

General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type LAN-on-motherboard (LOM)
Expansion / Connectivity
Interfaces 2 x Ethernet 1000 - RJ-45
