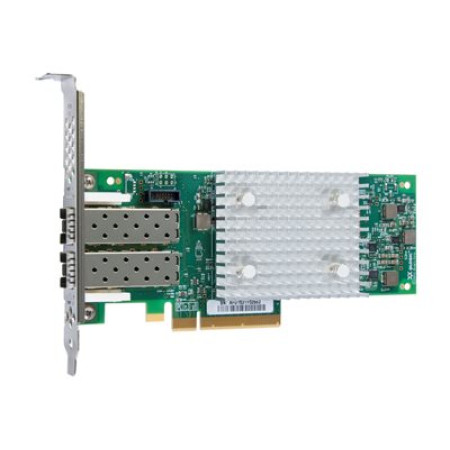

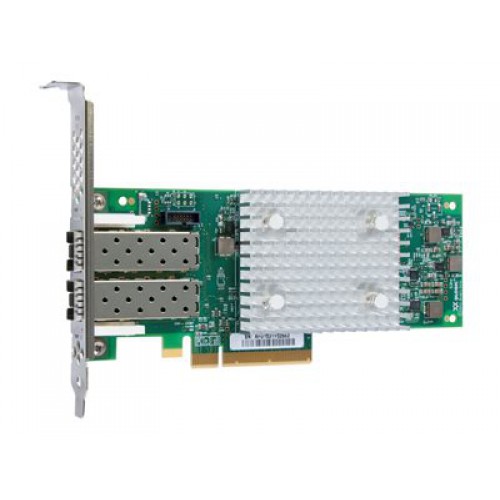

[7ZT7A00518] ThinkSystem QLogic QLE2742 PCIe 32Gb 2-Port SFP+ Fibre Channel Adapter

Specifications

Networking
Ports 32Gb Fibre Channel SFP+ x 2
Connectivity Technology Wired
Data Link Protocol 8Gb Fibre Channel, 16Gb Fibre Channel, 32Gb Fibre Channel
Fibre Channel FC-GS-2, FC-GS-3, FC-Tape, FCP-2, FC-PI-5, SCSI-FCP, FC-PI-6
Data Transfer Rate 28.05 Gbps
Features Auto-negotiation, Forward Error Correction (FEC), Transparent (N_Port ID Virtualization - NPIV) mode support, Extended Message-Signaled Interrupts (MSI-X), Fabric-Assigned port WorldWide Name (FA-WWN), Fabric-ased Boot LUN Discovery (F-BLD), Link cable beacon (LCB), Class-specific Control (CS_CTL), Read Diagnostic Parameters (RDP)

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90% (non-condensing)
General
Device Type Host bus adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Expansion / Connectivity
Interfaces 2 x 32Gb Fibre Channel Gen 6 (Short Wave) - LC
