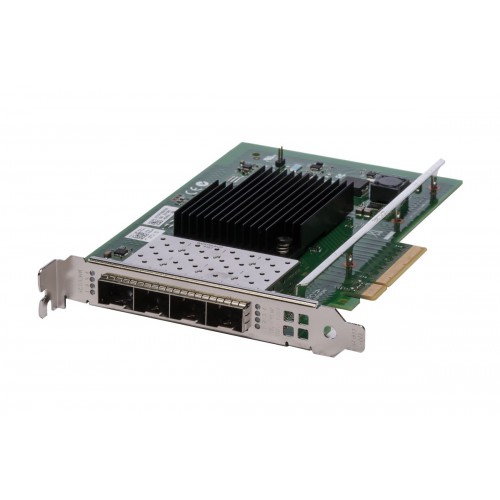

[7XC7A05525] ThinkSystem Intel X710-DA4 4x10Gb SFP+ Adapter

Specifications

Networking
Ports 10 Gigabit SFP+ x 4
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity Jumbo frame size: 9728 ¦ VLANs supported: 4096
Remote Management Protocol SNMP, RMON
Features Flow control, VLAN support, Quality of Service (QoS), Jumbo Frames support, Virtual Machine Device Queues (VMDq), PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), adaptive load balancing (ALB), Energy Efficient Ethernet, Extended Message-Signaled Interrupts (MSI-X), SNMP support, Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), TLP Processing Hint (TPH)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.1Qbg, IEEE 802.1Qbh
Dimensions & Weight
Width 0.6 in
Depth 6.6 in
Height 2.7 in

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90%
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x8
Expansion / Connectivity
Interfaces 4 x 10Gb Ethernet - SFP+
