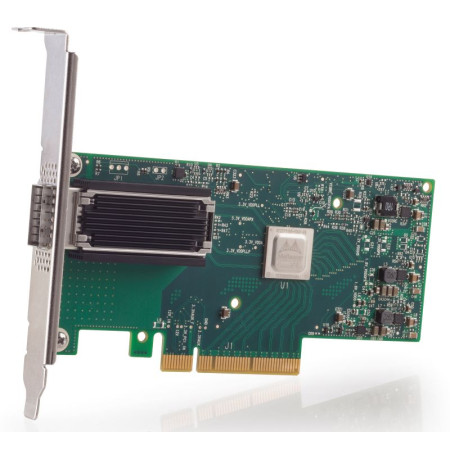

[7XC7A05524] ThinkSystem Mellanox ConnectX-4 PCIe FDR 1-Port QSFP VPI Adapter

Specifications

Processor / Memory
Processor 1 x Mellanox ConnectX-4

Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards VCCI, CB, FCC, RoHS, ICES, cTUVus, RCM
Networking
Ports 40Gb Ethernet / Infiniband FDR x 1
Connectivity Technology Wired
Cabling Type Ethernet 40GBase-R2, Ethernet 20GBase-R2
Data Link Protocol 40 Gigabit Ethernet, 40Gb InfiniBand
Data Transfer Rate 40 Gbps
Capacity Jumbo frame size: 9600 ¦ Virtual functions: 256 ¦ Physical functions: 16 ¦ Ingress and egress QoS levels: 1000
Network / Transport Protocol uDAPL, NFS
Features Virtual Protocol Interconnect (VPI), TCP/IP offloading, Quality of Service (QoS), RDMA support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), Data Center Bridging (DCB), tagged VLAN, Ethernet encapsulation (EoIB), checksum offload support, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, iSCSI remote boot, Header Data Split (HDS), Ethernet remote boot, InfiniBand remote boot, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), RAID offload
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express
Expansion / Connectivity
Interfaces 1 x 40Gb Ethernet / InfiniBand FDR - QSFP
