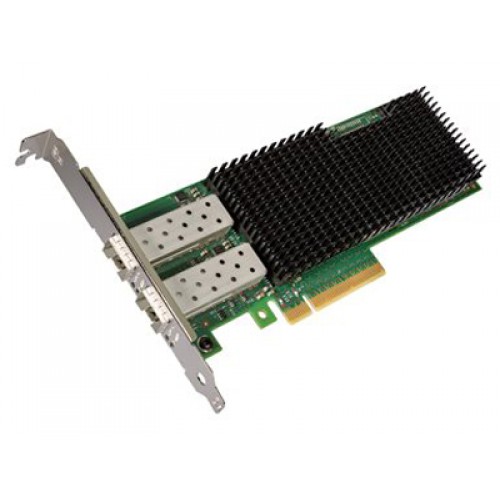

[7XC7A05523] ThinkSystem Intel XXV710-DA2 PCIe 25Gb 2-Port SFP28 Ethernet Adapter

Specifications

Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards VCCI, C-Tick, BSMI, EN 61000-3-2, RRL, EN 61000-3-3, EN55024, UL 94 V-1, KC, AS/NZS CISPR 22, RoHS 2011/65/EU, ICES-003 issue 4, FCC CFR47 Part 15 A, IEEE 1588, EN 55032
Networking
Ports 25 Gigabit SFP28 x 2
Connectivity Technology Wired
Data Link Protocol 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Capacity VLAN tags: 4096 ¦ Jumbo frame size: 9728
Remote Management Protocol SNMP, RMON
Features Flow control, VLAN support, IPv6 support, IP address filtering, Quality of Service (QoS), Virtual Machine Device Queues (VMDq), PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Link Aggregation Control Protocol (LACP), adaptive load balancing (ALB), Energy Efficient Ethernet, Class of Service (CoS), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, Virtual Ethernet Port Aggregator (VEPA), Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Advanced Packet Filtering, Switch Fault Tolerance (SFT), Adapter Fault Tolerance (AFT), VM Load Balancing (VMLB)
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1as, IEEE 802.3az, IEEE 802.1Qbg, IEEE 802.1Qbh, IEEE 802.3by, IEEE 802.3bd
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x8
Expansion / Connectivity
Interfaces 2 x 25Gb Ethernet - SFP28
