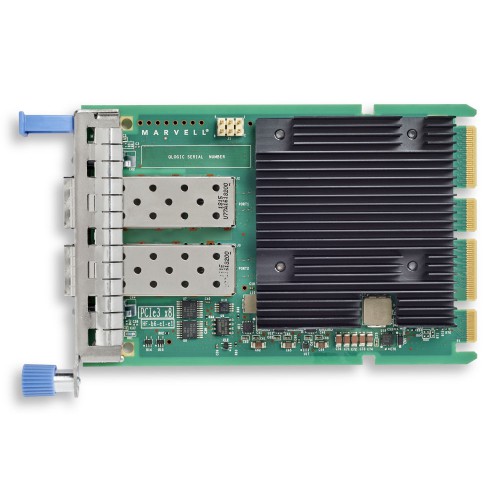

[4XC7A08264] ThinkSystem Marvell QL41232 10/25GbE SFP28 2-Port OCP Ethernet Adapter

Specifications

Networking
Ports 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Capacity Jumbo frame size: 9600
Network / Transport Protocol TCP/IP, UDP/IP, uDAPL, SMB, NFS
Features MPLS support, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, RDMA support, PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, iSCSI remote boot, Ethernet remote boot, Priority-Based Flow Control (PFC), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), Link Aggregation, Software Defined Networking (SDN), Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Mellanox PeerDirect
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 80% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type Open Compute Project mezzanine (OCP)
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet/25Gb Ethernet - SFP28
