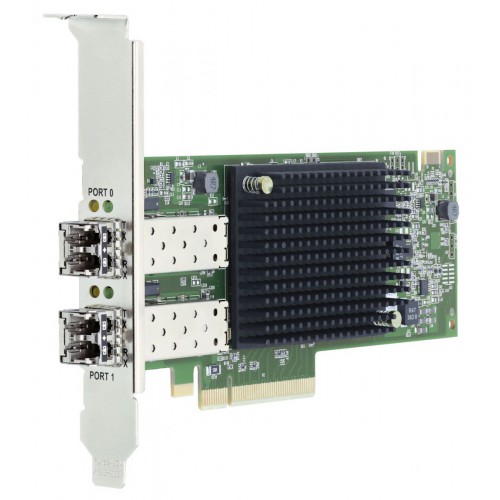

[4XC7A08251] ThinkSystem Emulex LPe35002 32Gb 2-port PCIe Fibre Channel Adapter

Specifications

Networking
Ports 32Gb Fibre Channel Gen 7 (Short Wave) x 2
Connectivity Technology Wired
Cabling Type Fibre Channel
Data Link Protocol 32Gb Fibre Channel Gen 7 (Short Wave)
Fibre Channel FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SPC-3, FC-FS-4, FC-GS-7, FC-PI-6, SBC-3, SPC-4, SSC-4, SSC-3, FC-LS-3, FC-NVMe, FC-FS-5, FC-PI-7
Data Transfer Rate 28.05 Gbps

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Host bus adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 4.0 x8
PCI Specification Revision PCIe 4.0
Expansion / Connectivity
Interfaces 2 x 32Gb Fibre Channel Gen 7 (Short Wave) - SFP+
