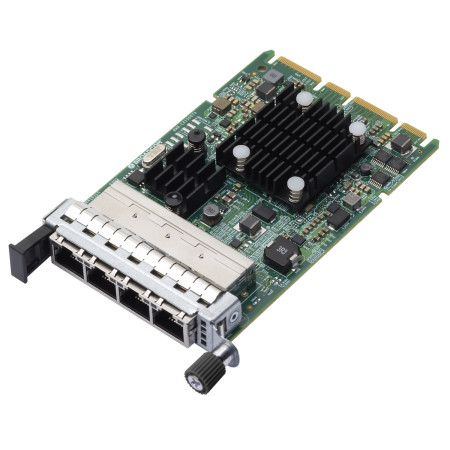

[4XC7A08240] ThinkSystem Broadcom 57454 10GBASE-T 4-port OCP Ethernet Adapter

Specifications

Processor / Memory
Processor 1 x Broadcom BCM57454

Miscellaneous
Included Accessories Low-profile bracket
Compliant Standards BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Networking
Ports 10Gb Ethernet x 4
Connectivity Technology Wired
Cabling Type Ethernet 1000Base-T, Ethernet 10GBase-T
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity Jumbo frame size: 9600
Network / Transport Protocol TCP/IP
Features Wake on LAN (WOL), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), Data Center Bridging (DCB), TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), Edge Virtual Bridging (EVB), Accelerated Receive Flow Steering (RFS), Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), Priority-Based Flow Control (PFC), Network Controller Sideband Interface (NC-SI), Link Aggregation, RDMA over Converged Ethernet (RoCE) v2, Function Level Reset (FLR), Software Defined Networking (SDN), VLAN Tagging, Network Function Virtualization (NFV), TruFlow, Enhanced transmission selection (ETS), SMBus 2.0, flow acceleration
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588-2008

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Network adapter
Interface (Bus) Type Open Compute Project mezzanine (OCP) 3.0
Expansion / Connectivity
Interfaces 4 x 10GBase-T - RJ-45
