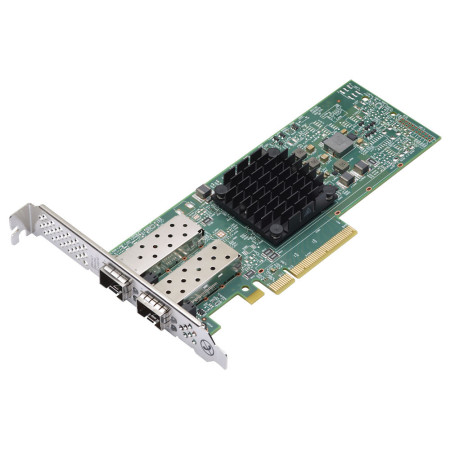

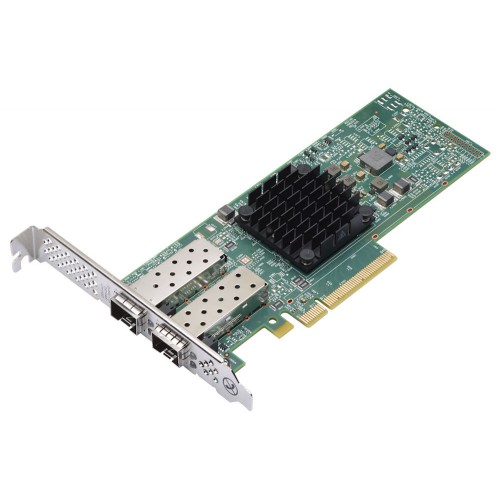

[4XC7A08238] ThinkSystem Broadcom 57414 10/25GbE SFP28 2-port PCIe Ethernet Adapter

Specifications

Processor / Memory
Processor 1 x Broadcom BCM57414

Miscellaneous
Compliant Standards BSMI CNS 13438 Class B, ICES-003, RRL, CSA 22.2 No. 950, ICES-003 Class B, EN55024 Class B, UL 60950-1, EN 60950-1, FCC CFR47 Part 15 B, cTUVus, UL 94, KN22, KN24, EN 55022:2010+AC:2011 Class B, UL 1977, UL 796, CNS 14336 Class B
Networking
Ports 10Gb Ethernet / 25Gb Ethernet SFP28 x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Capacity Jumbo frame size: 9600
Network / Transport Protocol TCP/IP
Features Wake on LAN (WOL), Jumbo Frames support (up to 9600 bytes)
Compliant Standards IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3az

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0 x8
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet/25Gb Ethernet - SFP28
