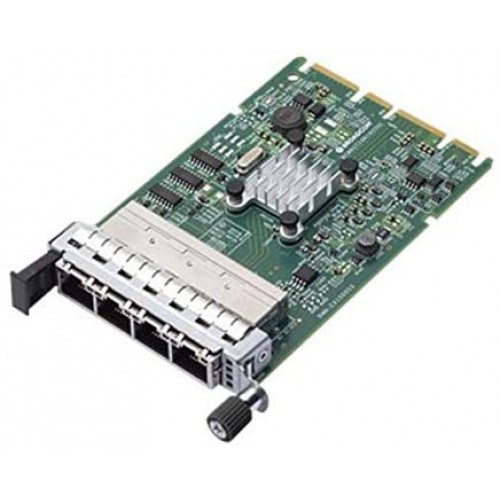

[4XC7A08235] ThinkSystem Broadcom 5719 1GbE RJ45 4-port OCP Ethernet Adapter

Specifications

Processor / Memory
Processor 1 x Broadcom BCM5719

Miscellaneous
Compliant Standards VCCI, BSMI, EN 60950, EN 61000-3-2, EN55022, RRL, UL 1950, EN 61000-3-3, EN55024, RoHS, AS/NZS CISPR 22, ICES-003 issue 4, FCC CFR47 Part 15 A, IEC 950, CSA C22.2 950-95, IEEE 802.1Q
Networking
Ports Gigabit Ethernet x 4
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Network / Transport Protocol TCP/IP
Features Wake on LAN (WOL), Jumbo Frames support (up to 9600 bytes)
Compliant Standards IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3az

Environmental Parameters
Min Operating Temperature 50 °F
Max Operating Temperature 95 °F
Humidity Range Operating 20 - 80% (non-condensing)
General
Device Type Network adapter
Interface (Bus) Type Open Compute Project mezzanine (OCP)
Expansion / Connectivity
Interfaces 4 x 1000Base-T - RJ-45
