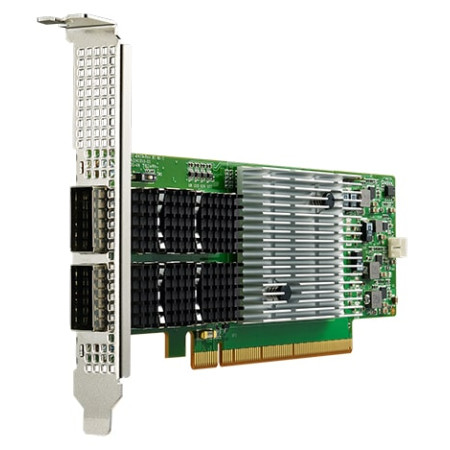

[4XC7A08229] ThinkSystem Mellanox ConnectX-5 Ex 25/40GbE 2-port Low-Latency Adapter

Specifications

Networking
Ports Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet / 40Gb Ethernet QSFP28 x 2
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, Spatial Reuse Protocol (SRP), 40 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 40 Gbps
Capacity Jumbo frame size: 9.6 KB ¦ Virtual functions: 1000 ¦ Physical functions per port: 16
Network / Transport Protocol SMB, NFS
Features MPLS support, TCP/IP offloading, Quality of Service (QoS), PXE support, Large Send Offload (LSO), Large Receive Offload (LRO), Receive Side Scaling (RSS), UEFI support, Single Root I/O Virtualization (SR-IOV), Energy Efficient Ethernet, Advanced Error Reporting (AER), tagged VLAN, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, iSCSI remote boot, Header Data Split (HDS), Ethernet remote boot, Transmit Side Scaling (TSS), RDMA over Converged Ethernet (RoCE), TLP Processing Hint (TPH), Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), user mode registration and remapping of memory (UMR), On demand paging (ODP), Message Signaled Interrupts (MSI), OVS Offload, iSCSI Extensions over RDMA (iSER), Interrupt coalescing, NVMe over Fabric (NVMf) Offloads, Downstream Port Containment (DPC), Access Control Service (ACS), Process Address Space ID (PASID), Address Translation Services (ATS), PeerDirect RDMA, 64/66 encoding, Rendezvous protocol offload, MPI Tag Matching, burst buffer offload, In-Network Memory registration-free RDMA memory access, Erasure Coding offload
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 1149.1, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3by, IEEE 1149.6
Dimensions & Weight
Depth 5.6 in
Height 2.7 in

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 4.0 x16
Expansion / Connectivity
Interfaces 2 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet/40Gb Ethernet - QSFP28
