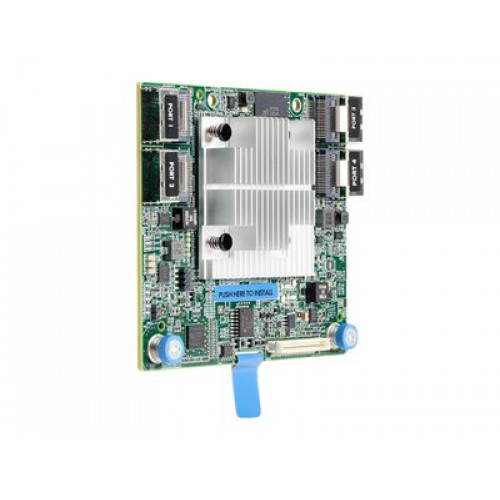

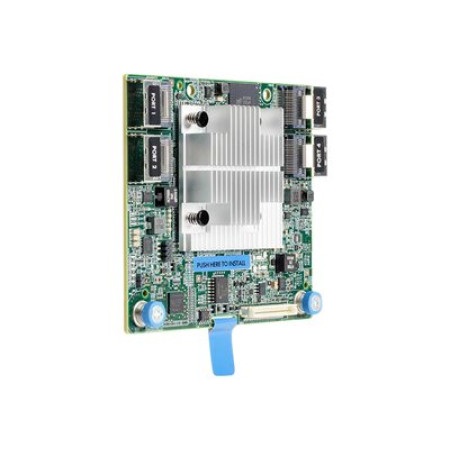

[869083-B21] HPE Smart Array P816i-a SR Gen10 (16 Int Lanes/4GB Cache/SmartCache) 12G SAS Modular LH Controller

Specifications

Miscellaneous
Features Flash Backed Write-back Cache (FBWC)
Compliant Standards FIPS 140-2 Level 1
Storage Controller
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Buffer Size 4 GB
Supported Devices Hard drive, disk array (RAID)
Channel Qty 16
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Maximum LUNs 64
General
Device Type Storage controller (RAID) - plug-in card
Host Bus PCIe 3.0 x8
Features Low profile heatsink
Expansion / Connectivity
Interfaces 4 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software / System Requirements
OS Required Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
