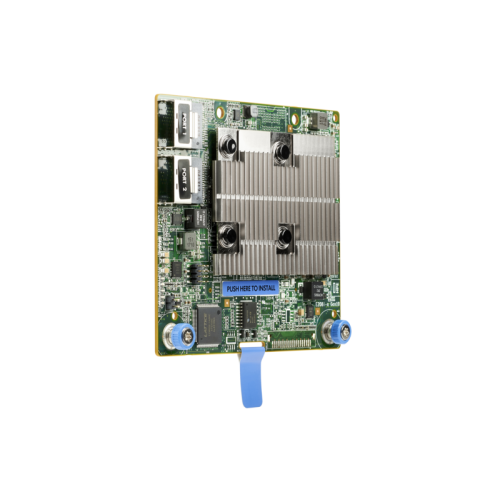

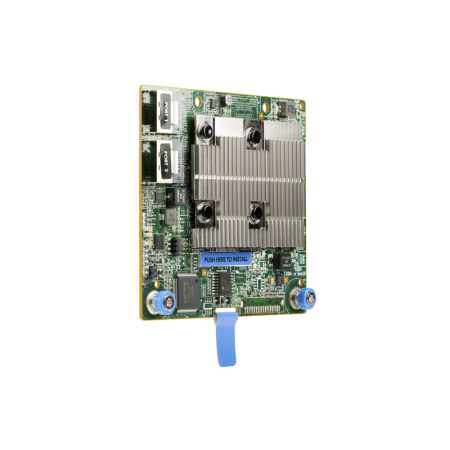

[869079-B21] HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular LH Controller

Specifications

Miscellaneous
Compliant Standards FIPS 140-2 Level 1
Storage Controller
Interface SATA 6Gb/s / SAS 12Gb/s
Data Transfer Rate 12 Gbit/s
Supported Devices Hard drive, disk array (RAID)
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Maximum LUNs 64
General
Device Type Storage controller (RAID) - plug-in card
Host Bus PCIe 3.0 x8
Features Low profile heatsink
Expansion / Connectivity
Interfaces 2 x SATA 6Gb/s / SAS 12Gb/s (internal)
Software / System Requirements
OS Required Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Oracle Solaris, Citrix XenServer, Oracle Linux, ClearOS, VMware vSphere (ESXi), Microsoft Windows Hyper-V Server
