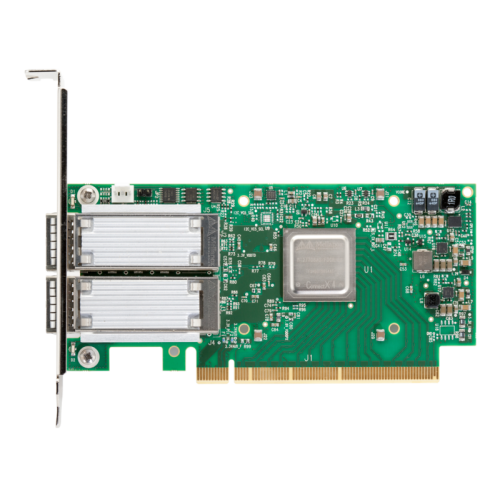

[872726-B21] HPE InfiniBand EDR/Ethernet 100Gb 2-port 841QSFP28 Adapter

Specifications

Processor / Memory
Processor 1 x Mellanox ConnectX-5

Miscellaneous
Compliant Standards CISPR 22 Class A, EN55022 Class A, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, IEC 60068-2-32, RoHS, IEC 60068-2-29, IEC 60068-2-64, KC, FCC CFR47 Part 15 A, CAN/CSA-C22.2 No. 60950-1
Networking
Ports 100Gb Ethernet / Infiniband EDR QSFP28 x 2
Connectivity Technology Wired
Data Link Protocol 100 Gigabit Ethernet, 100 Gigabit InfiniBand
Data Transfer Rate 100 Gbps
Capacity Virtual functions: up to 256 ¦ Physical functions: up to 16
Features RDMA over Converged Ethernet (RoCE), InfiniBand EDR Link support, Extended Reliable Connected transport (XRC), Dynamically Connected transport (DCT), NVMe over Fabric (NVMf) Offloads
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ba, IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IBTA 1.3, IEEE 802.1Qbg, IEEE 1588v2, IEEE 802.3bj, IEEE 802.3bm

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x16
Expansion / Connectivity
Interfaces 2 x 100Gb Ethernet / Infiniband EDR QSFP28 - QSFP28
Power
Power Consumption Operational 16.12 Watt
