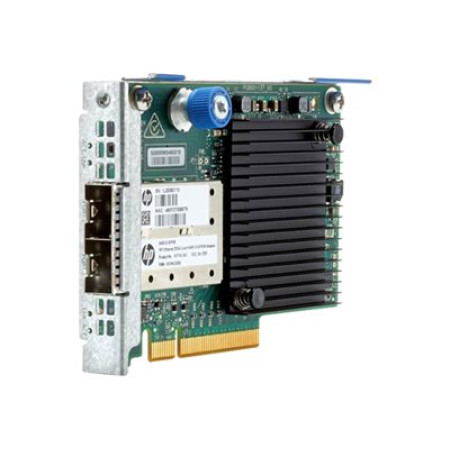

[817749-B21] HPE Ethernet 10/25Gb 2-port FLR-SFP28 MCX4121A-ACFT Adapter

Specifications

Processor / Memory
Processor 1 x Mellanox Technologies Mellanox ConnectX-4 Lx

Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, ICES-003, EN55024, WHQL, EN 60950-1, RoHS, ACA, cTUVus, BSMI Class A, VCCI Class A, EN 55022 Class A
Networking
Ports 25 Gigabit Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet, 25 Gigabit Ethernet
Data Transfer Rate 25 Gbps
Performance Bidirectional throughput: 100 Gbps ¦ Bandwidth per port: 50 Gbps
Capacity Jumbo frame size: up to 9.2 KB
Remote Management Protocol SNMP
Status Indicators Link/activity
Features VLAN support, IPv6 support, full duplex mode, TCP/IP offloading, Quality of Service (QoS), Jumbo Frames support, IPv4 support, PXE support, LACP support, LLDP support, Large Send Offload (LSO), Receive Side Scaling (RSS), UEFI support, TCP Segmentation Offload (TSO), QoS tagging, Extended Message-Signaled Interrupts (MSI-X), UDP/IP offloading, TCP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Virtual Extensible LAN (VXLAN), Network Virtualization using Generic Routing Encapsulation (NVGRE), RDMA over Converged Ethernet (RoCE) v2
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 1588v2
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 140 °F
Humidity Range Operating 8 - 90%
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type FlexibleLOM
PCI Specification Revision PCIe 3.0
Expansion / Connectivity
Interfaces 2 x 25Gb Ethernet - SFP28
Power
Power Consumption Operational 9.7 Watt
