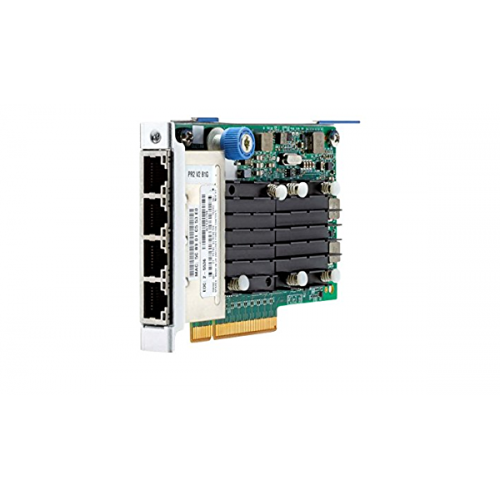

[764302-B21] HPE FlexFabric 10Gb 4-port FLR-T 57840S Adapter

Specifications

Processor / Memory
Processor 1 x Qlogic 57840S

Miscellaneous
Compliant Standards FCC Class A certified, BSMI, FCC Part 15, RoHS, EN 61000-3-2:2006, KN24, EN 61000-3-2:2008, KN22 Class A, VCCI V-3/2010.04 Class A, ICES-003 issue 4, EN 55022:2006+A1:2007 Class A, EN55024:1998, CNS 13438 Class A
Networking
Ports 10Gb Ethernet x 4
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-T
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Capacity Jumbo frame size: up to 9 KB
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP
Status Indicators Status, link/activity
Features IPv6 support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), TCP Segmentation Offload (TSO), TCP Offload Engine (TOE), Precision Time Protocol (PTP), TCP/IP checksum offload, UDP/IP checksum offload
Compliant Standards IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
Dimensions & Weight
Width 0.6 in
Depth 4.7 in
Height 2.8 in
Weight 4.23 oz
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Network adapter
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Expansion / Connectivity
Interfaces 4 x 10GBase-T - RJ-45
Software / System Requirements
OS Required Oracle Solaris 11.1, Microsoft Windows Server 2008 R2 SP1 (64-bits), SUSE Linux Enterprise Server 12 x64 Edition, Citrix XenServer 6.5, Microsoft Windows Server 2012 R2 (64-bit), Ubuntu 12.04.5 LTS, Oracle Solaris 11.2, Microsoft Windows Server 2012 R2 with Hyper-V (64-bit), VMware ESXi 5.5 update 3, SuSE Linux Enterprise Server 11 SP4 x64 Edition, Red Hat Enterprise Linux 6.7 (64-bit), Red Hat Enterprise Linux 7.2 (64-bit), VMware ESXi 6.0 update 1 or later, Citrix XenServer 7.0, Ubuntu Linux 14.04.2 LTS
