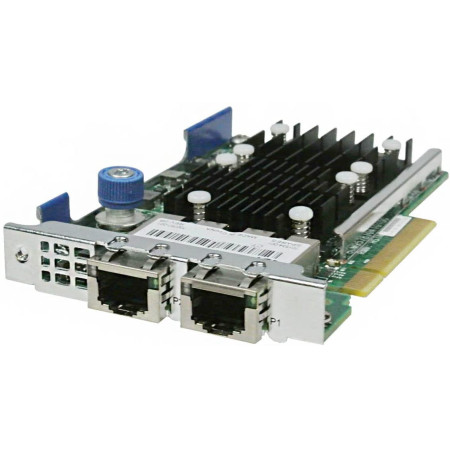

[700759-B21] HPE FlexFabric 10Gb 2-port FLR-T 57810S Adapter

Specifications

Processor / Memory
Processor 1 x Broadcom BCM57810S
RAM 256 MB

Miscellaneous
Compliant Standards FCC Class A certified, UL, VCCI Class A ITE, EN55024, EN55022 Class A, ICES-003 Class A, WEEE, RoHS, BSMI Class A, EN 61000-3-2:2006, EN 61000-3-3:2008
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Cabling Type Ethernet 10GBase-T
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Status Indicators Port status, link/activity
Features Auto-negotiation, Jumbo Frames support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Compliant Standards IEEE 802.3, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.2x
Manufacturer Warranty
Service & Support Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x8
PCI Specification Revision PCIe 2.0
Expansion / Connectivity
Interfaces 2 x 10GBase-T - RJ-45
Software / System Requirements
OS Required SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, SuSE Linux Enterprise Server 10 for x86/AMD64/Intel EM64T, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Microsoft Windows Small Business Server 2011 Standard, Microsoft Windows Small Business Server 2011 Essentials, Microsoft Windows MultiPoint Server 2011, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 6.2, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0, Microsoft Windows Server 2012, Red Hat Enterprise Linux 5.8, Red Hat Enterprise Linux 5.9, Red Hat Enterprise Linux 6.3, Citrix XenServer 6.1, VMware vSphere 5.0, VMware vSphere 4.1
