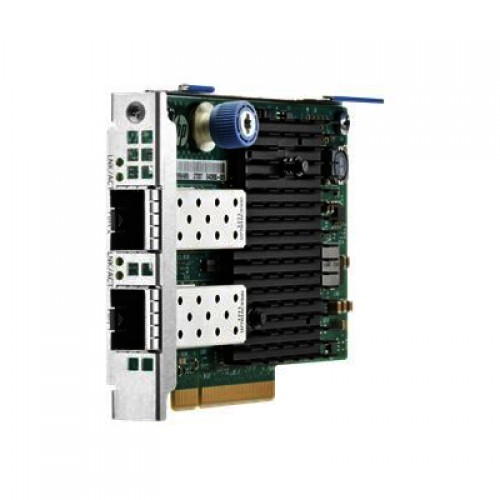

[665243-B21] HPE Ethernet 10Gb 2-port FLR-SFP+ X520-DA2 Adapter

Specifications

Processor / Memory
Processor 1 x Intel
Compatibility Information

Miscellaneous
Compliant Standards UL, BSMI, BSMI CNS 13438 Class A, ICES-003, EN55024, EN55022 Class A, WEEE, FCC Part 15 A, VCCI V-3 Class A ITE, EN 61000-3-2:2006, EN 61000-3-3:2008
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Remote Management Protocol SNMP
Status Indicators Port status, link/activity
Features Wake on LAN (WOL), Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Compliant Standards IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.1ab (LLDP), IEEE 802.1Qau
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x8
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet
Compatible Slots 1 x FlexibleLOM
Software / System Requirements
OS Required SunSoft Solaris 10, SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Red Hat Enterprise Linux 6, Microsoft Windows Server 2008 (32/64-bits), Red Hat Enterprise Linux 5.x, VMware ESXi 4.1, VMware ESXi 5, VMware ESX, Microsoft Windows Server 2008 R2 (32/64-bits), Microsoft Windows Server 2012 (32/64-bits)
