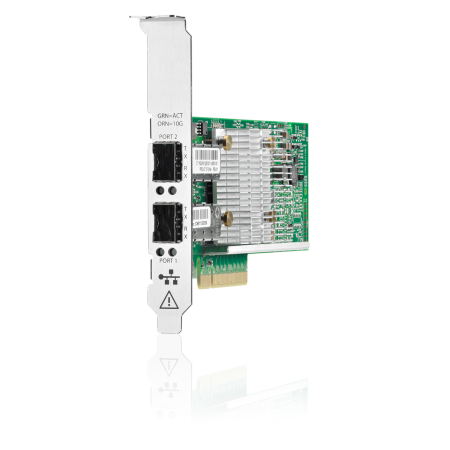

[652503-B21] HPE Ethernet 10Gb 2-port SFP+ 57810S Adapter

Specifications

Processor / Memory
Processor 1 x Broadcom BCM57810S
RAM 256 MB

Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards FCC Class A certified, UL, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, FCC Part 15, WEEE, RoHS, ICES, VCCI V-3 Class A ITE
Networking
Ports 10Gb Ethernet x 2
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Data Transfer Rate 10 Gbps
Remote Management Protocol SNMP
Status Indicators Port status, link/activity
Features IPv6 support, Jumbo Frames support, teaming support, PXE support, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO)
Compliant Standards IEEE 802.3, IEEE 802.3ad (LACP), IEEE 802.1AX, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, IEEE 802.1Qbh
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 95% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 3.0 x8
PCI Specification Revision PCIe 3.0
Expansion / Connectivity
Interfaces 2 x 10Gb Ethernet - SFP+
Compatible Slots 1 x PCI Express 3.0 x8
Software / System Requirements
OS Required SuSE Linux Enterprise Server 11, Microsoft Windows Server 2008 R2, SuSE Linux Enterprise Server 10, Microsoft Windows HPC Server 2008, Microsoft Windows Server 2008 (32/64-bits), Oracle Solaris 10, Red Hat Enterprise Linux 6.1, Red Hat Enterprise Linux 5.7
