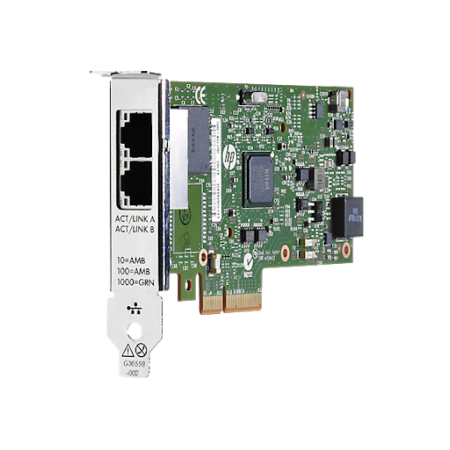

[652497-B21] HPE Ethernet 1Gb 2-port BASE-T I350-T2V2 Adapter

Specifications

Processor / Memory
Processor 1 x Intel I350

Compatibility Information

Included Accessories Low-profile bracket
Compliant Standards FCC Class B certified, UL, VCCI Class B ITE, CISPR 22 Class B, DOC-B, EN 60950, UL 1950, VCCI-II, WHQL, EN55022 Class B, ICES-003 Class B, MIC Class B, WEEE, RoHS, BSMI Class A
Networking
Ports Gigabit Ethernet x 2
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Remote Management Protocol SNMP
Status Indicators Port transmission speed, link/activity
Features Auto-negotiation, wake on LAN (WOL), network fault tolerance (NFT), Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Dimensions & Weight
Depth 5.3 in
Height 2.5 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 95% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x4
PCI Specification Revision PCIe 2.0
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45
Compatible Slots 1 x PCI Express 2.0 x4 - low-profile
Software / System Requirements
OS Required SUSE Linux Enterprise Server, Microsoft Windows Server 2008, Microsoft Windows HPC Server 2008, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, VMware ESXi 5, Red Hat Enterprise Linux 5.7, Citrix XenServer 6.0
