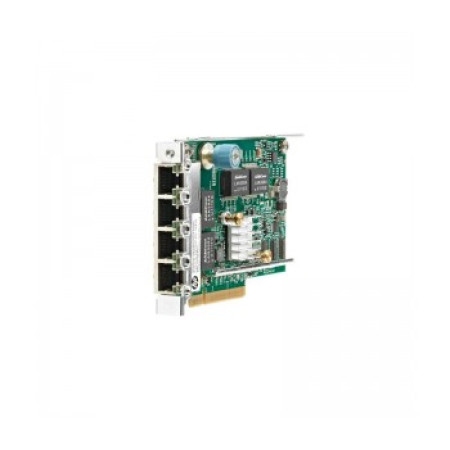

[629135-B22] HPE Ethernet 1Gb 4-port FLR-T BCM5719 Adapter

Specifications

Processor / Memory
Processor 1 x Broadcom BCM5719

Miscellaneous
Compliant Standards FCC Class B certified, UL, VCCI Class B ITE, EN55024, FCC Part 15, EN 60950-1, WEEE, RoHS, ICES, VCCI V-3, EN 61000-3-2:2006, EN 61000-3-3:2008, KN22, KN24, EN55022:2006 Class B
Networking
Ports Gigabit Ethernet x 4
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Network / Transport Protocol TCP/IP, UDP/IP
Remote Management Protocol SNMP
Status Indicators Port transmission speed, link/activity
Features VLAN support, full duplex mode, Jumbo Frames support, PXE support, Large Send Offload (LSO), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Dimensions & Weight
Depth 4.6 in
Height 3 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 2.0 x4
Expansion / Connectivity
Expansion Slots 1 x FlexibleLOM
Interfaces 4 x Ethernet 1000 - RJ-45
Power
Power Consumption Operational 5.5 Watt
Software / System Requirements
Software Included HP Systems Insight Manager (HP SIM)
OS Required SuSE Linux Enterprise Server 11, SuSE Linux Enterprise Server 10, Microsoft Windows Small Business Server 2011 Essentials, Oracle Solaris 10, Red Hat Enterprise Linux 6.1, VMware ESX 4.1, VMware ESXi 4.1, Red Hat Enterprise Linux 5.7, VMware ESXi 5.1, VMware ESXi 5.0
