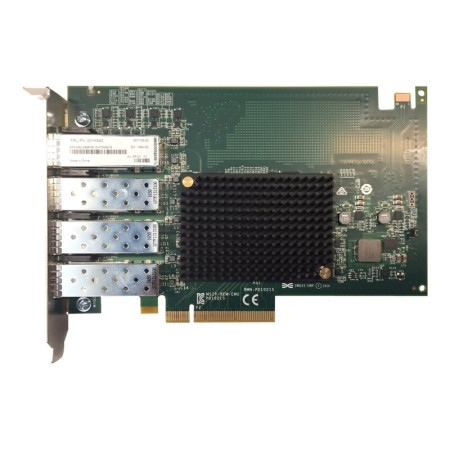

[7ZT7A00493] ThinkSystem Emulex OCe14104B-NX PCIe 10Gb 4-Port SFP+ Ethernet Adapter

Specifications

Processor / Memory
Processor 1 x XE102-P2 - Emulex

Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Networking
Ports 10 Gigabit SFP+ x 4
Connectivity Technology Wired
Data Link Protocol 10 Gigabit Ethernet
Capacity MAC addresses per port: 128 ¦ Jumbo frame size: 9216
Features Traffic shaping, RDMA support, Large Send Offload (LSO), Receive Side Scaling (RSS), Single Root I/O Virtualization (SR-IOV), Extended Message-Signaled Interrupts (MSI-X), TCP/IP checksum offload, UDP/IP checksum offload, RDMA over Converged Ethernet (RoCE), Unified Fabric Port (UFP), RDMA over Converged Ethernet (RoCE) v2, Virtual Fabric mode, Switch Independent mode, Virtual Ethernet Bridge (VEB), Opens Fabrics Enterprise Distribution (OFED)
Compliant Standards IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3p, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qbg

Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 5 - 95% (non-condensing)
General
Device Type Network adapter
Form Factor Plug-in card
Interface (Bus) Type PCI Express 3.0
Expansion / Connectivity
Interfaces 4 - SFP+
Power
Power Consumption Operational 14.4 Watt
