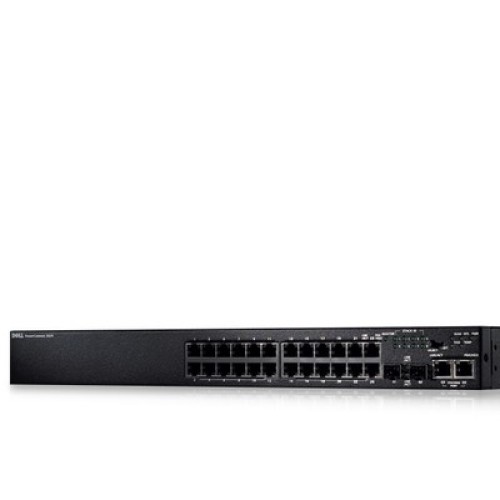

Dell PowerConnect PC3524P 24 Port PoE Fast Ethernet Switch
ราคายังไม่รวม ภาษีมูลค่าเพิ่ม 7%:
฿0
Warranty DELL:
ให้คำปรึกษา และบริการหลังการขาย
รับประกันสินค้า 3 ปี
ติดต่อสอบถามราคา พิเศษ
SALE (095-675-8034)
รับจัดหาอุปกรณ์ Server / Storage และทำ MA
Email [email protected] Office 02-460-9200
Alternate Model Number : 469-3417
PRODUCT CONFIGUTATION : 24 10/100BASE-T ports 2 RJ-45 10/100/1000BASE-T ports (supports resilient stacking) 2 SFP slots for fiber media support Auto-negotiation for speed, duplex mode and flow control MDI/MDIX Port mirroring Broadcast storm control PoE feature Virtual Cable Tester™
PERFORMANCE : Switching capacity 12.8 Gbps Forwarding rate 9.5 Mpps Up to 8,000 MAC addresses
MANAGEMENT : Web-based management interface Industry-standard CLI accessible via Telnet or Local Serial Port SNMPv1, SNMPv2c and SNMPv3 supported; four RMON groups supported (history, statistics, alarms, and events) TFTP transfers of firmware and configuration files Dual firmware images on-board Multiple configuration file upload/download supported Statistics for error monitoring and performance optimization including port summary tables BootP/DHCP IP address management supported Syslog remote logging capabilities Temperature sensors for environmental monitoring LLDP and LLDP-MED; Switch stacking up to 8 units per stacking group.
QUALITY OF SERVICE : Layer 2 trusted mode (IEEE 802.1p tagging) Layer 3 trusted mode (DSCP); four priority queues per port Adjustable Weighted-RoundRobin (WRR), and strict queue scheduling
SECURITY : IEEE 802.1x based edge authentication Switch access password protection User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access Port-based MAC address alert and lock-down IP address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP; RADIUS and TACACS+ remote authentication for switch management access; SSLv3 and SSHv2 encryption for switch management traffic; Management access filtering via management access profiles; DHCP Snooping
VLAN : VLAN support for tagging and port-based as per IEEE 802.1Q Up to 256 VLANs supported Dynamic VLAN with GVRP support Private VLAN Edge, Protocol VLANs, and Voice VLAN
SWITCHING FEATURES : Link aggregation with up to eight aggregated links and up to eight member ports per aggregated link (IEEE 802.3ad) LACP support (IEEE 802.3ad)
AVAILABILITY : Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support Multiple Spanning Trees (IEEE 802.1s)
LAYER 2 MULTICAST : Static IP multicast IGMP snooping for IP multicast support
CHASSIS : 17.3 x 15.2 x 1.7 inch 1U, rack-mounting kit included 17.6 lbs
PERIPHERAL PRODUCTS : Dell SFP Transceivers (1000SX, 1000LX, and 1000baseT) EPS-470 Extended Power Supply
