Specifications
Processor / Memory
Processor 1 x Broadcom BCM5720
Miscellaneous
Included Accessories Low-profile bracket, full-height bracket
Compliant Standards VCCI Class B ITE, EN 61000-3-2, EN55022, EN 61000-3-3, FCC Part 15 B, WEEE, RoHS
Networking
Ports Gigabit Ethernet x 2
Connectivity Technology Wired
Cabling Type Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 Gbps
Status Indicators Link/activity
Features Jumbo Frames support, PXE support, Large Send Offload (LSO)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1as, IEEE 802.3az
Dimensions & Weight
Depth 4.4 in
Height 2.4 in
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 131 °F
Humidity Range Operating 10 - 90% (non-condensing)
General

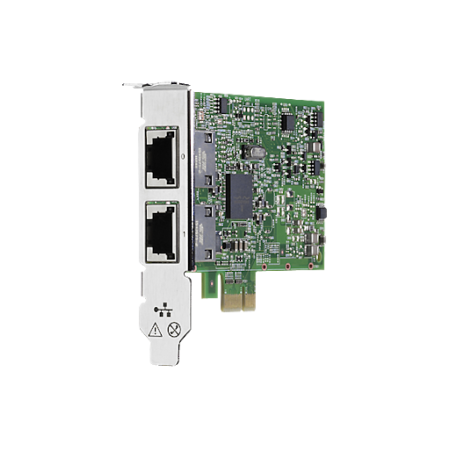

Device Type Network adapter
Form Factor Plug-in card - low profile
Interface (Bus) Type PCI Express 2.0 x1
PCI Specification Revision PCIe 2.0
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45
Compatible Slots 1 x PCI Express 2.0 x1
